DDR2 SO DIMM, SO DIMM Sockets, Double Data Rate (DDR) 2, Stack Height .205 in [5.2 mm], Right Angle Module Orientation

Product Categories
Loupeng Electronics Co., Ltd
Contact Now

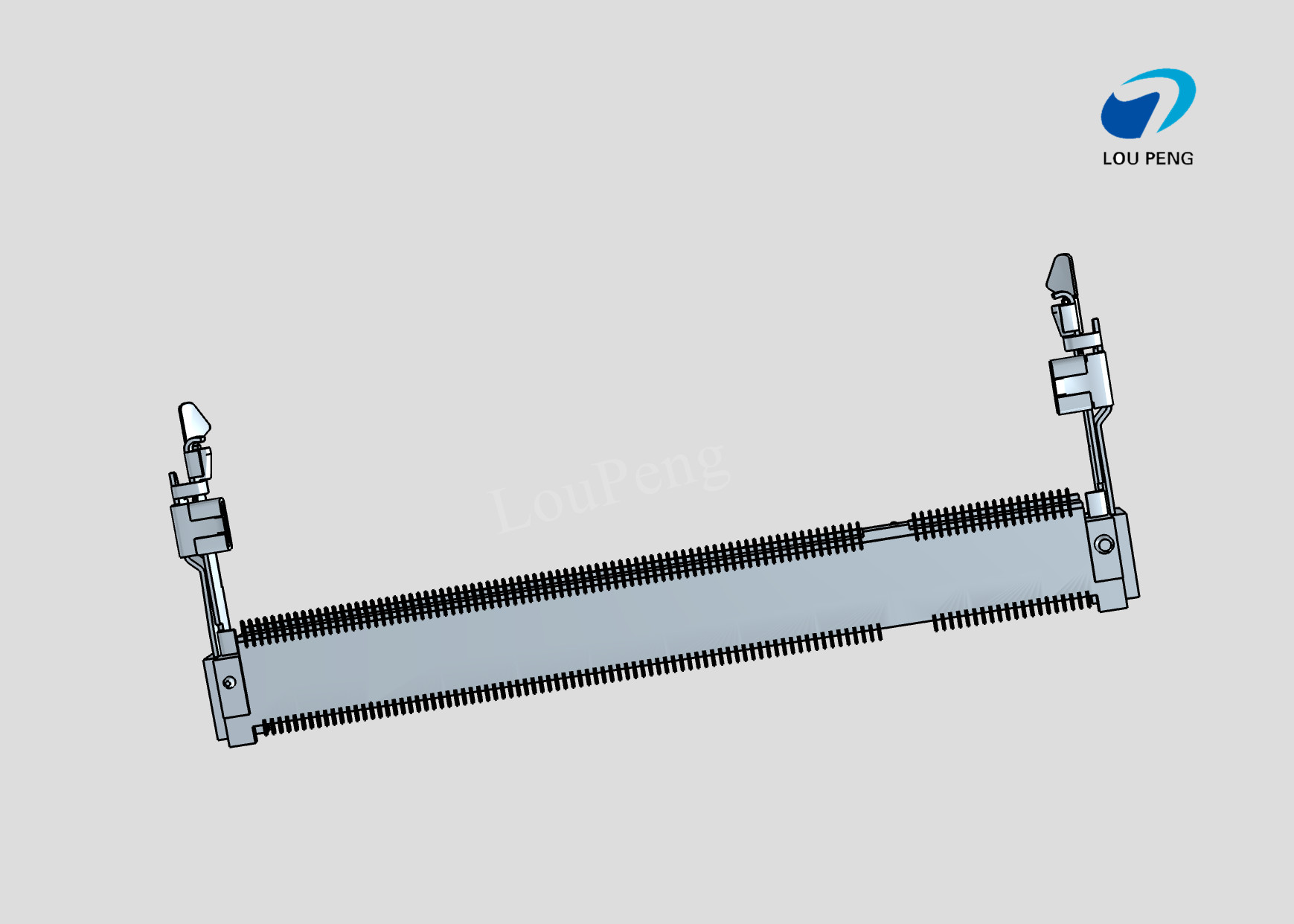

DDR2 SO DIMM, SO DIMM Sockets, Double Data Rate (DDR) 2, Stack Height .205 in [5.2 mm], Right Angle Module Orientation

Brand Name : LP

Model Number : LP-DR001

Certification : ISO-9001：2000

Place of Origin : China

MOQ : 1000pcs

Price : 0.0001

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100000pcs

Delivery Time : 7~10 days

Packaging Details : Reel / Tray

Color : Black

Contact Now

PRODUCT DESCRIPTION

1. MATERIALS:

HOUSING: HIGH TEMPERATURE THERMOPLASTIC UL94-V0

CONTACT: COPPER ALLOY

LATCH: STAINLESS STEEL
PEG: COPPER ALLOY

2. FINISH
2.1 CONTACT AREA: 0.00005 MIN GOLD ALL OVER NIKEL
SOLDEING AREA: GOLD FLASH PLATING
FLOATING PEG: TIN PLATING

3. COPLANRITY: 0.10mm MAX (BEFORE SOLDERING)

4. THE FLOATING VALUE BY SOLDERING IS NOT INCLUDED

5. NOT MATING CONDITION

6. IF THE MODULE DOESN’T INSERT AND LOCKED IN THE LATCH

7. OPERATING TEMPERATURE: -55 -- 85 °C [-67 -- 185 °F]
8. NUMBER OF POSITIONS: 204 PIN

9. DRAM VOLTAGE(V): 1.8 V

DDR2 SO DIMM, SO DIMM Sockets, Double Data Rate (DDR) 2, Stack Height .205 in [5.2 mm], Right Angle Module Orientation


DDR2 SO DIMM, SO DIMM Sockets, Double Data Rate (DDR) 2, Stack Height .205 in [5.2 mm], Right Angle Module Orientation Manufactures

DDR2 SO DIMM, SO DIMM Sockets, Double Data Rate (DDR) 2, Stack Height .205 in [5.2 mm], Right Angle Module Orientation Images
